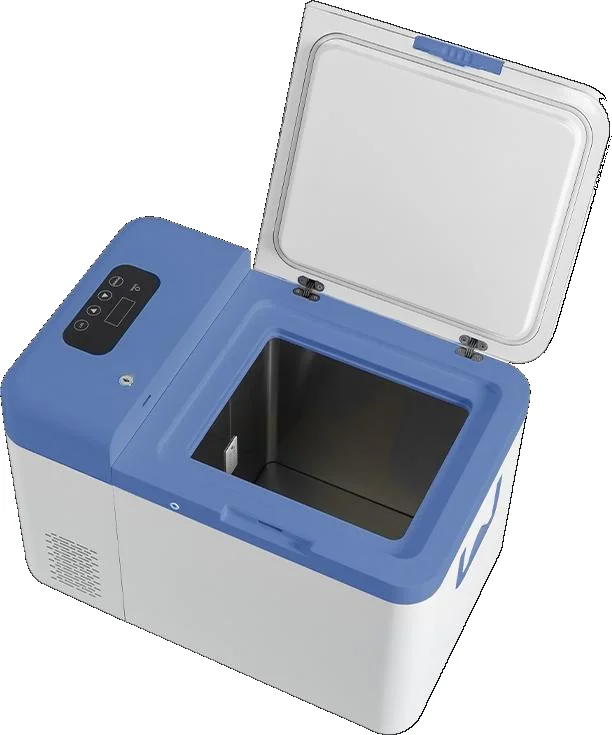

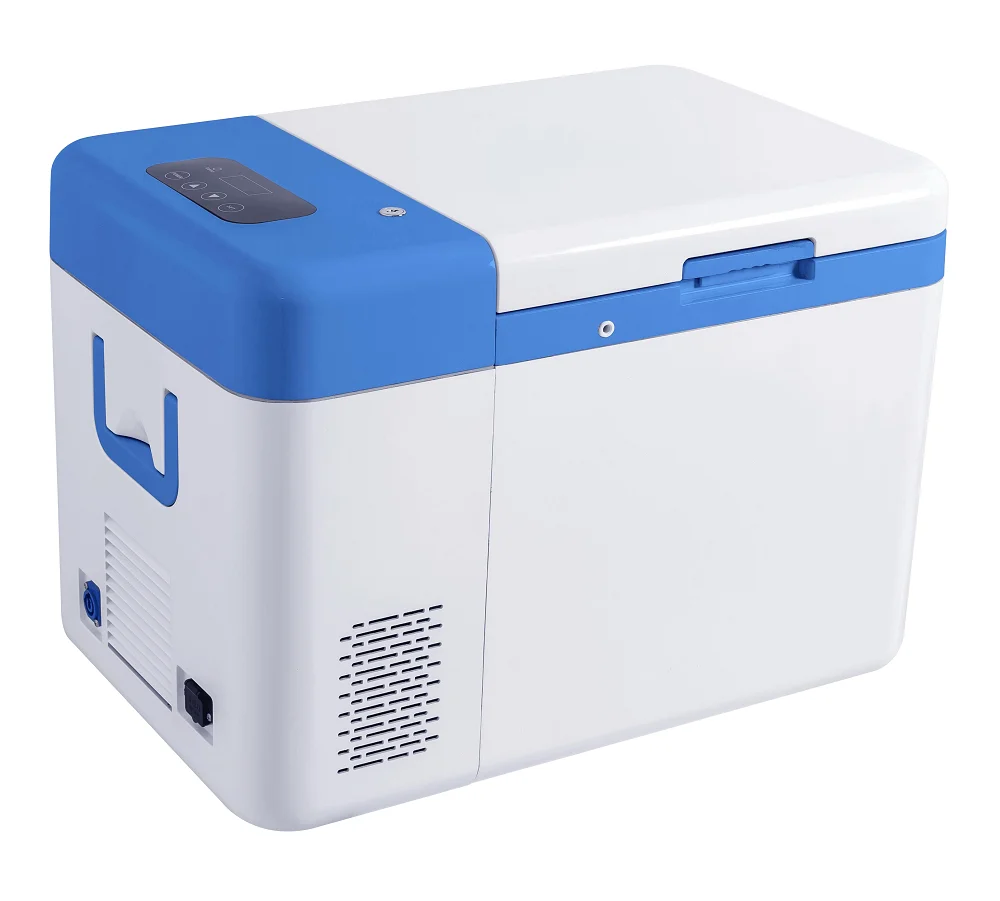

Portable Stainless Steel Medical Cryogenic Freezer Low Temperature Vaccine Cooler Box Refrigerator for Cars and Hospitals


Specification
• Application:
 Storage of general (non-flammable) laboratory materials
Storage Volume:
25 liters (0.9 cu.ft.)
Temperature Range:
25℃ to -86℃
Electric Power:
100V AC to 240V AC; 50Hz,60Hz; 12V DC to 24V DC
Maximum Power(Current)
100W (0.5A@220V,4.6A@24V)

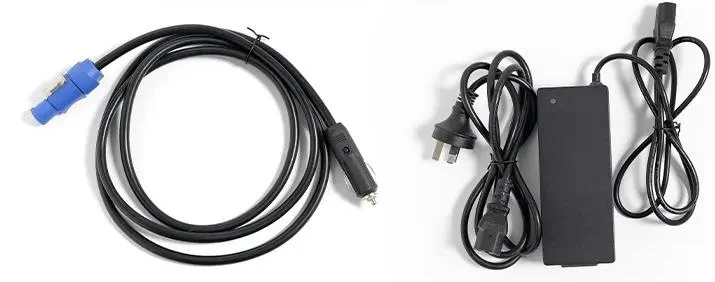

Power Cord:
Options Available Multiple options are available.
Refrigerant
R600a CFC Free
Power consumption
2.8KW.H/24H
• Noise:
<55dB
Environmental Conditions:
Non-corrosive, Non-flammable,Non- explosive,Altitude up to 2000m and Temperature 5℃ to 35℃,maximum
relative humidity 80%
Interior Dimension (L x W x D) :
300*250*300mm/(11.8 *9.8 * 11.8 in.)
Exterior Dimension (L x W x D) :
616*392*455mm/(24.3 *15.4 *17.9 in.)
Net Weight:
Empty 17.5KG
Shipping Dimension(L x W x D):
760*580*530 mm/(29.9*22.8*20.9in.)
Insulation:
High Performance Vacuum Insulated Panels and Polyurethane Foa
Shipping Weight:
26kg

BENEFITS

Preserve and deliver temperature-sensitive material anywhere in the world;
* Easily deploy long-term storage of biological materials with low power use in any form freezer can be powered by AC
mains or a 12V DC power source;
* Collect temperature-sensitive samples and specimens at remote or field locations


SAFEGUARDS TEMPERATURE SENSITIVE MATERIALS
* Portable design for point-of-use cold storage;
* Superior Stirling engine reliability scales down to a remarkably small footprint and weight (21 kg, 46 lbs.), without sacrificing performance;
* Provides industry's widest ultra-low temperature range of -86°C to -20°C;
* Adaptable power input provides operational flexibility between standard AC main outlets, worldwide, as well as vehicle-based 12V DC power or external battery devices;
* Utilizes 100% natural refrigerants to support sustainable, environmentally friendly operations;
* Optional SenseAnywhere wireless temperature logging allows for remote monitoring via cloud-based software;
* Ample storage capacity for thousands of 2mL vials within a surprising compact frame;
Product Description
Refrigeration System

* Cooling Engine: Free-piston Stirling Engine
* Refrigerant: Helium (He)
* Heat Transport System: Gravity Driven Thermosiphon
* Defrost Method: Manual

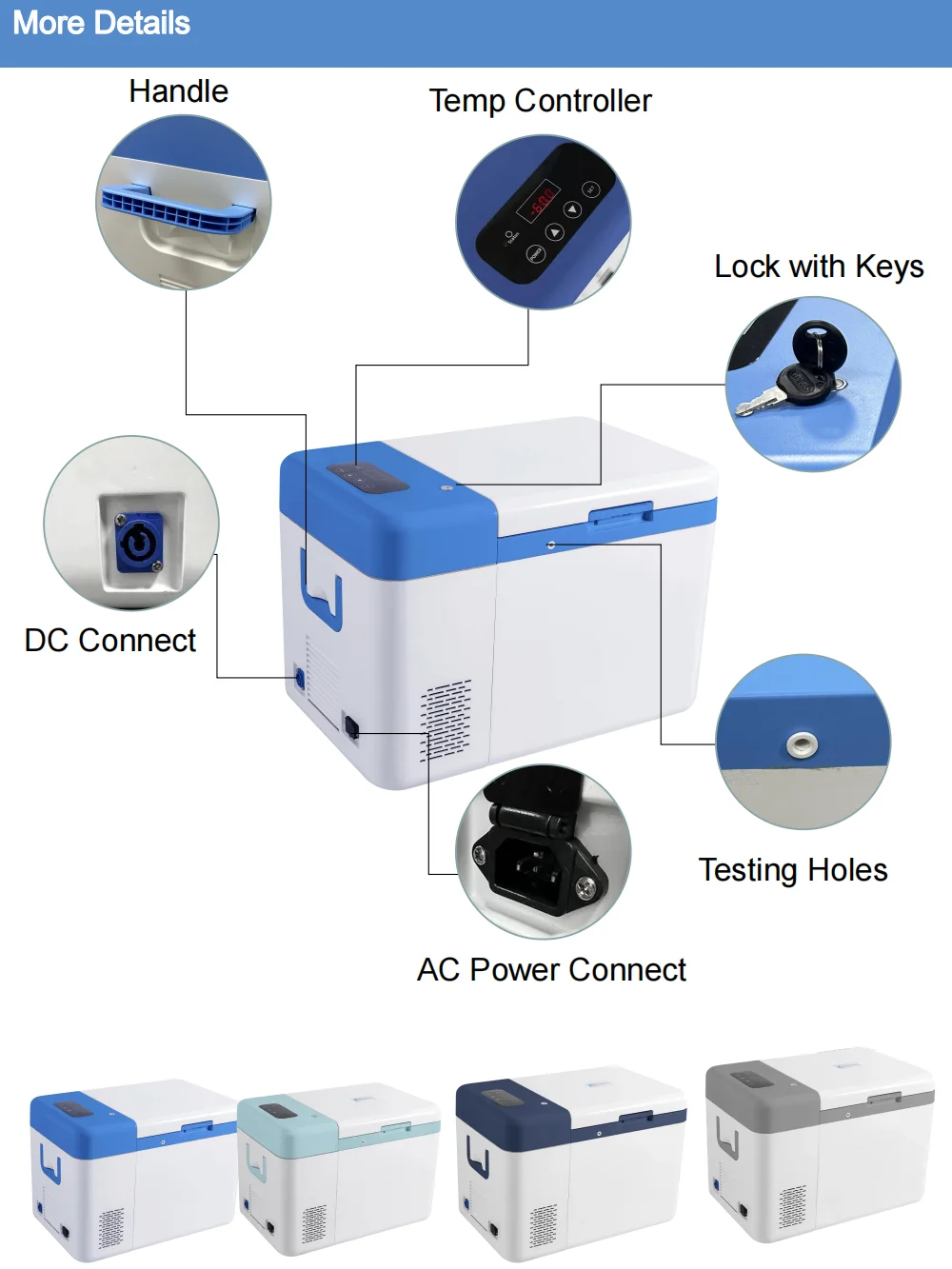

Controller
* Controller Type: Microprocessor controls
* Security: Lockable lid
* Warm and Cold Alarms Setpoint ± 10°C
* Control Sensor: One RTD(PT100 Class B),precision±0.3
Performance Data
* Steady State Energy: 1.47 kWh/day (average power 75watts) at -

86°C (Empty Cabinet)
* Ambient Temperature: 25ºC
* Take 3.5 Hours from 25℃ to -86℃ (Empty Cabinet)
* Temperature Control Capability: Target Temperature ±2℃
