Specification
Coilovers Shocks For Dodge Challenger Charger Chrysler 300 2011-2022 RWD

Fitment
For Dodge Challenger 11-22 RWD
For Dodge Charger 11-22 RWD
For Chrysler 300 11-22 RWD
Not fit cars with electronic suspension
Spring Rate Front
12kg/mm(672lbs/in)
Spring Rate Rear
14kg/mm(784lbs/in)
Top Mount
Pillow ball
Adjustable Height
Yes, lowering 1-3 inches depending on the vehicle models
Damping
Available, 24 levels of rebound damping force
Spring Length Front
230mm
Spring Length Rear
240mm
Front Spring Inner Diameter
70.5mm
Rear Spring Inner Diameter
72-81mm
Shock Structure Type
twin-tube
Spring Preload
7-10 mm

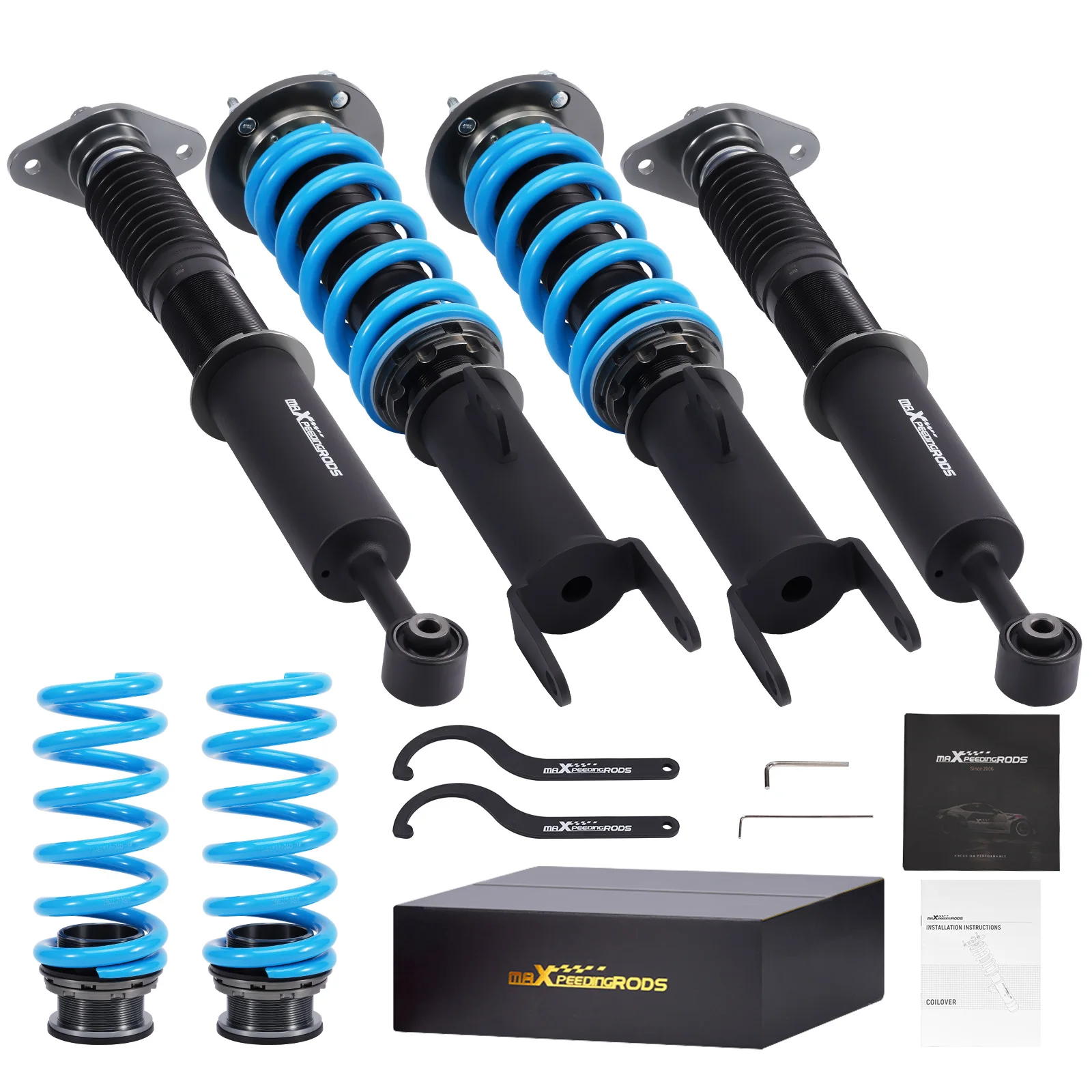

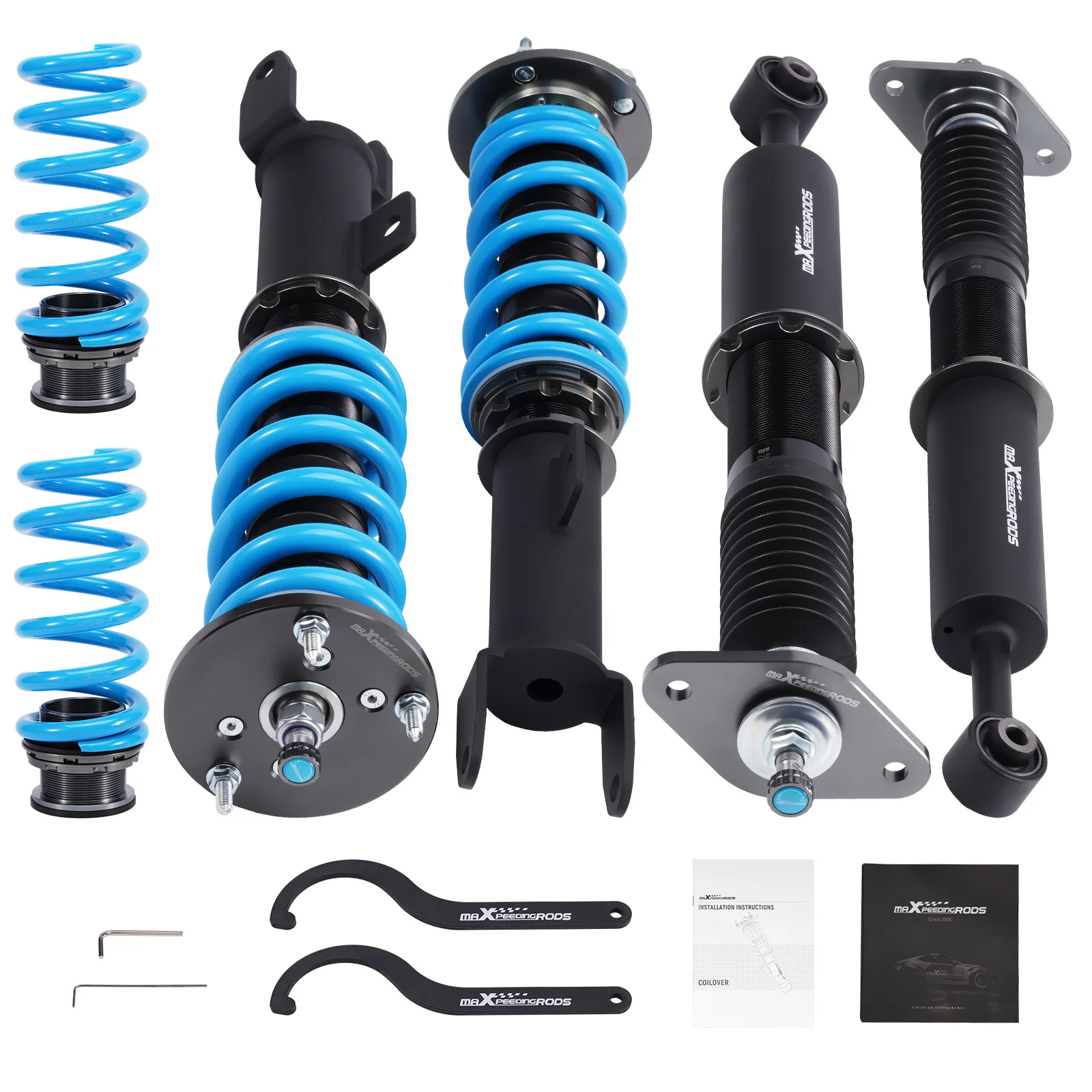

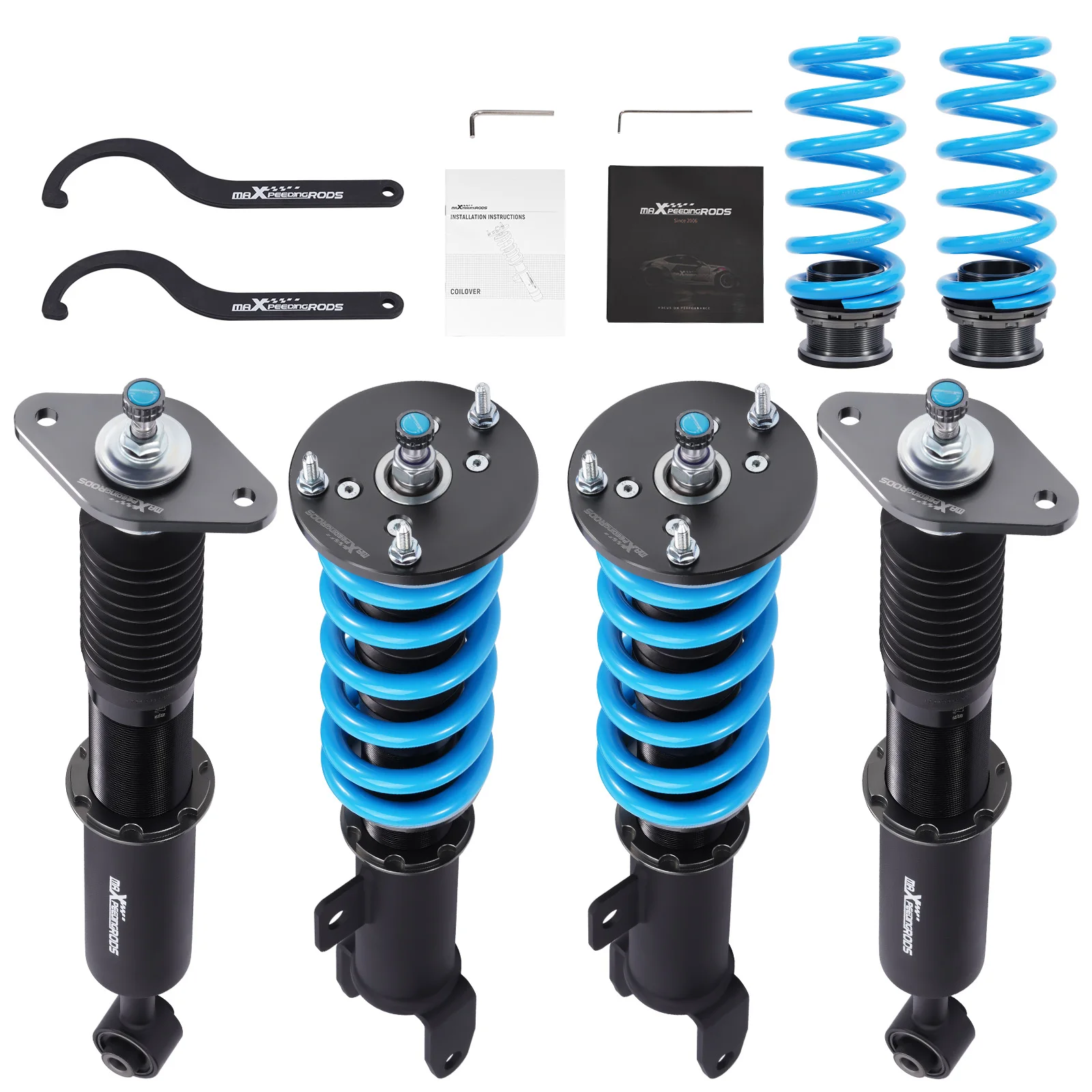

Package Including
2x front coil-overs
2x rear coil-overs
1x Allen wrench
2x C spanners
1x Installation Instructions
Features
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.
4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Top Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
9. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions
10. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
12. Clean room assembled---maintain higher level of accuracy and reliability.
1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. Camber plate top mounts help to eliminate the need for a separate camber kit.（Only Front)
3. Pillow ball top mount - It improves the steering feel and response.（Only Front)
4. Twin-Tube structure allows sufficient stroke within the shock absorber.
5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
6. Separate height adjustment does not affect damper stroke.
7. Height can be adjusted with coilovers installed on the vehicle.
8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
9. Height Adjustment tools included.
10. Full rebuildable.
11.A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
12.Quickly Install: Preload parameter is provided to save your 3-4 hours installation time.
