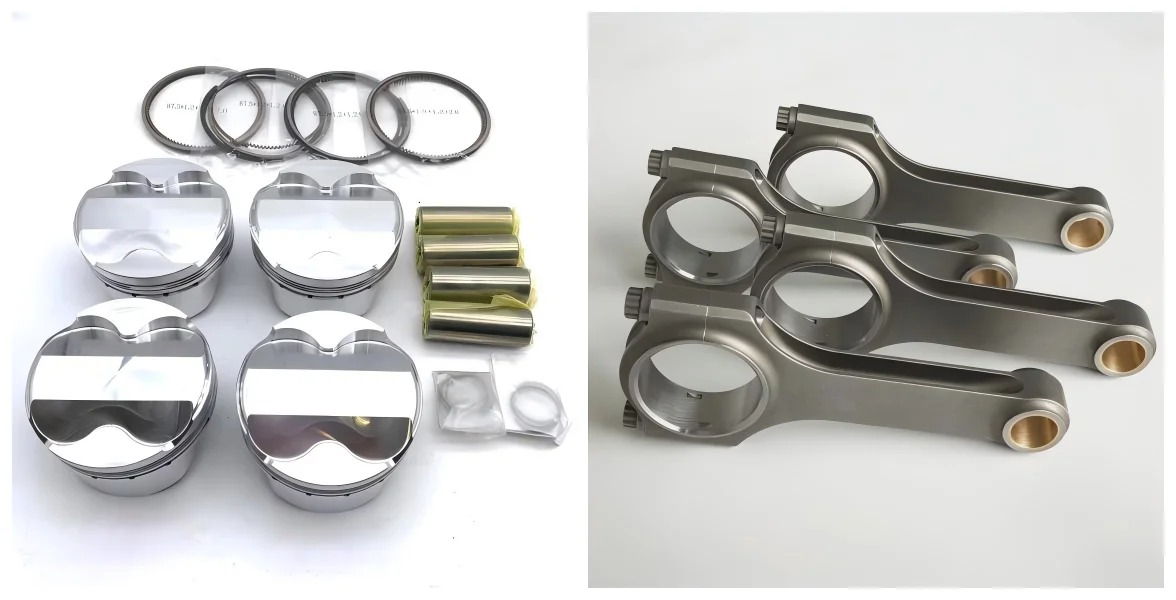

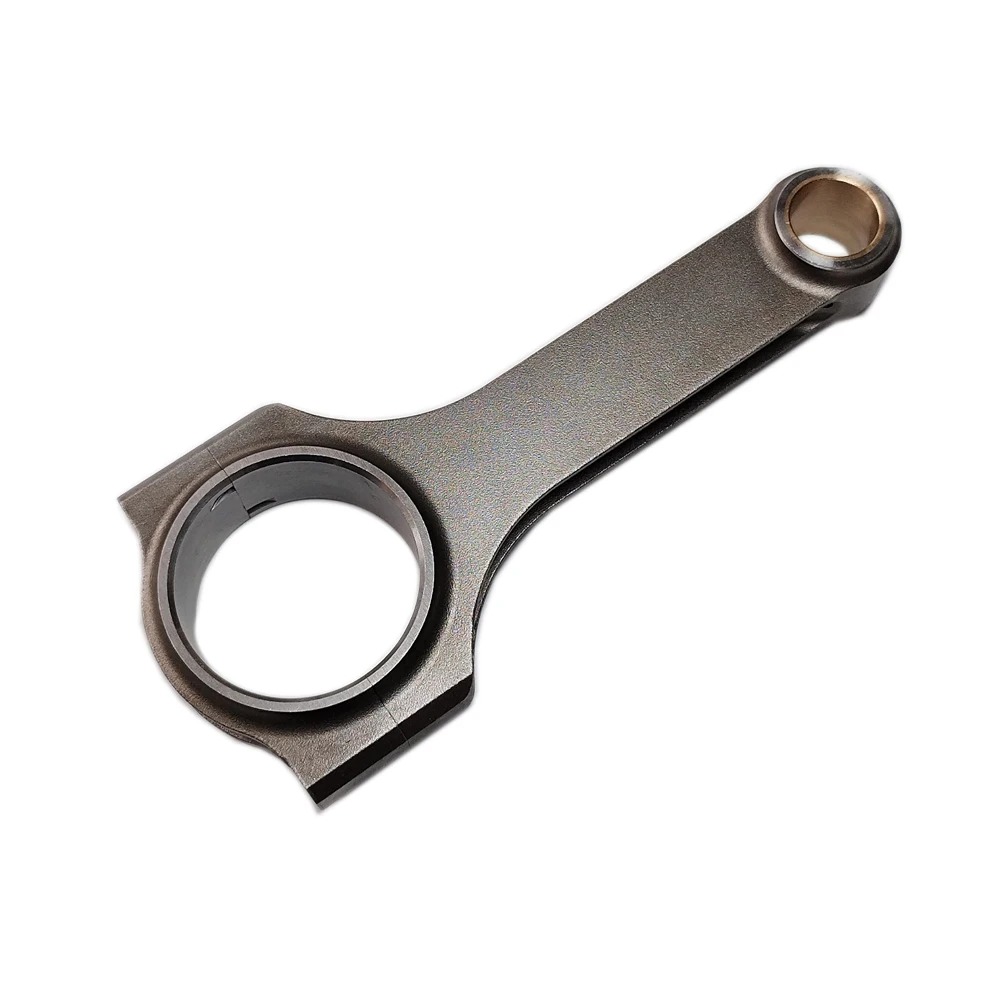

1, HIMYCAR FORGED CONNECTING RODS FOR HONDA K24 K24A

Dimensions:

Center to Center Length: 152.02mm/5.985"
Big End Bore Diameter: 51.001mm/2.008"
Big End Width: 19.8mm/0.780"
Small End Bore Diameter: 22.015mm /0.867"
Small End Width: 19.8mm/0.780"
Beam Style: H-beam

Connecting Rod Bolt Diameter: 3/8''-24unf-3b-1.500L
Approximate Connecting Rod Weight: 490g/piece
Advertised Horsepower Rating: 600-800hp
Material: Forged 4340 steel
Quantity: Sold as 4pieces /set
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Application:

For Honda/Acura K24 K24A1 K24A2 K24A4 K24A8 2.4L
for Honda CRV 2.4L 02-06 , K24A1
for Acura TSX 2.4L 04-08, K24A2
for Honda ACCORD 2.4L 03-14, K24A4
for Honda Element 2.4L 03-06, K24A4
for Honda Odyssey 2.4L 03-08, K24A4
for Honda Element 2.4L 07-11, K24A8
for Honda Odyssey 2.4L 08-14, K24A8
for Honda Accord (USDM) 2.4L 06-07, K24A8

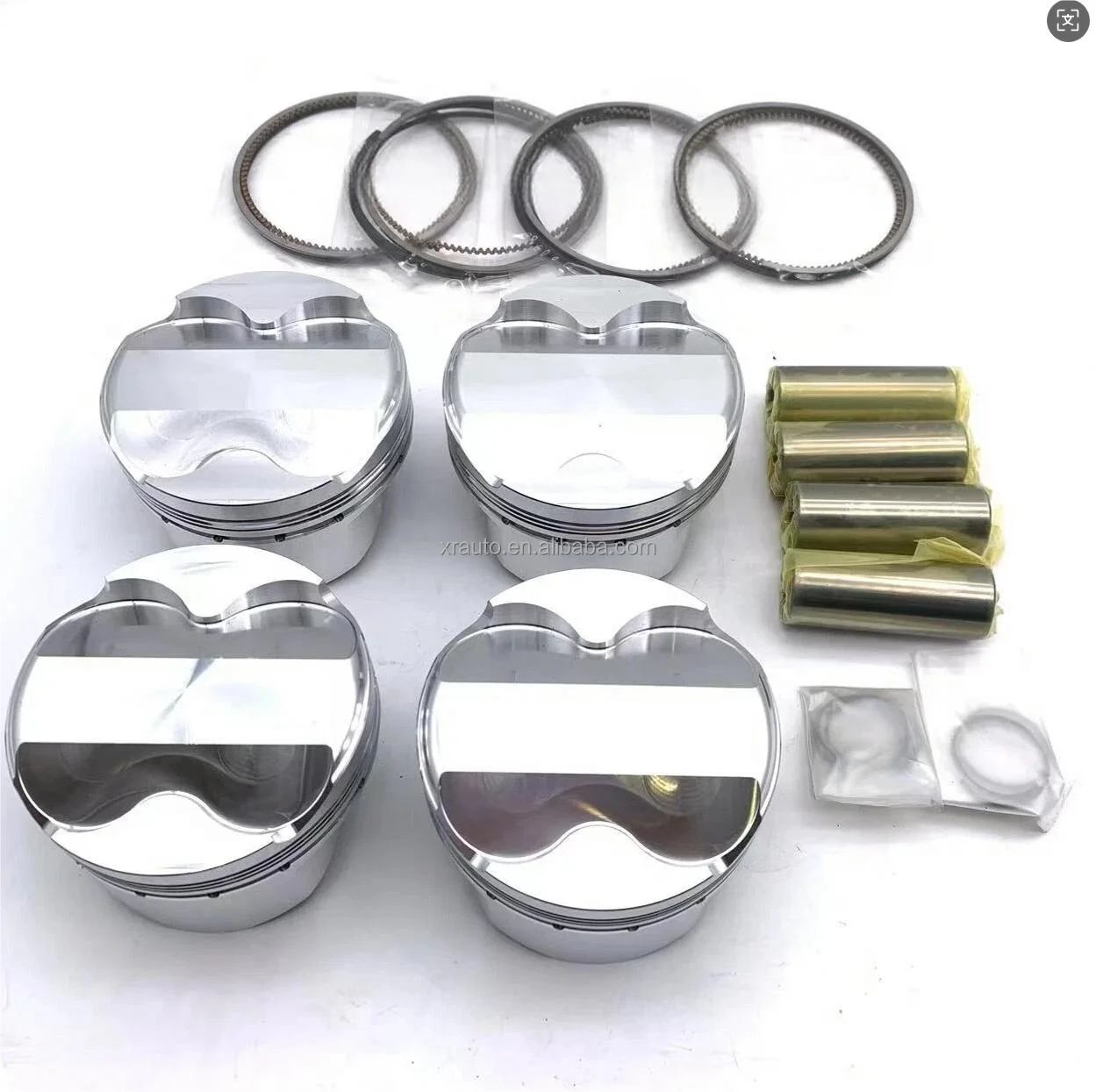

2, HIMYCAR custom forged pistons for HONDA K24 K24A

Cylinder diameter(mm) :87
Compression ratio: 10.0/ 10.5/12.5/13.3/13.5
Ring size : 87*1.2+1.2+2.0(mm)

Our standard is without coating, we provide coated pistons need to add some price, please contact us !

Items Included:

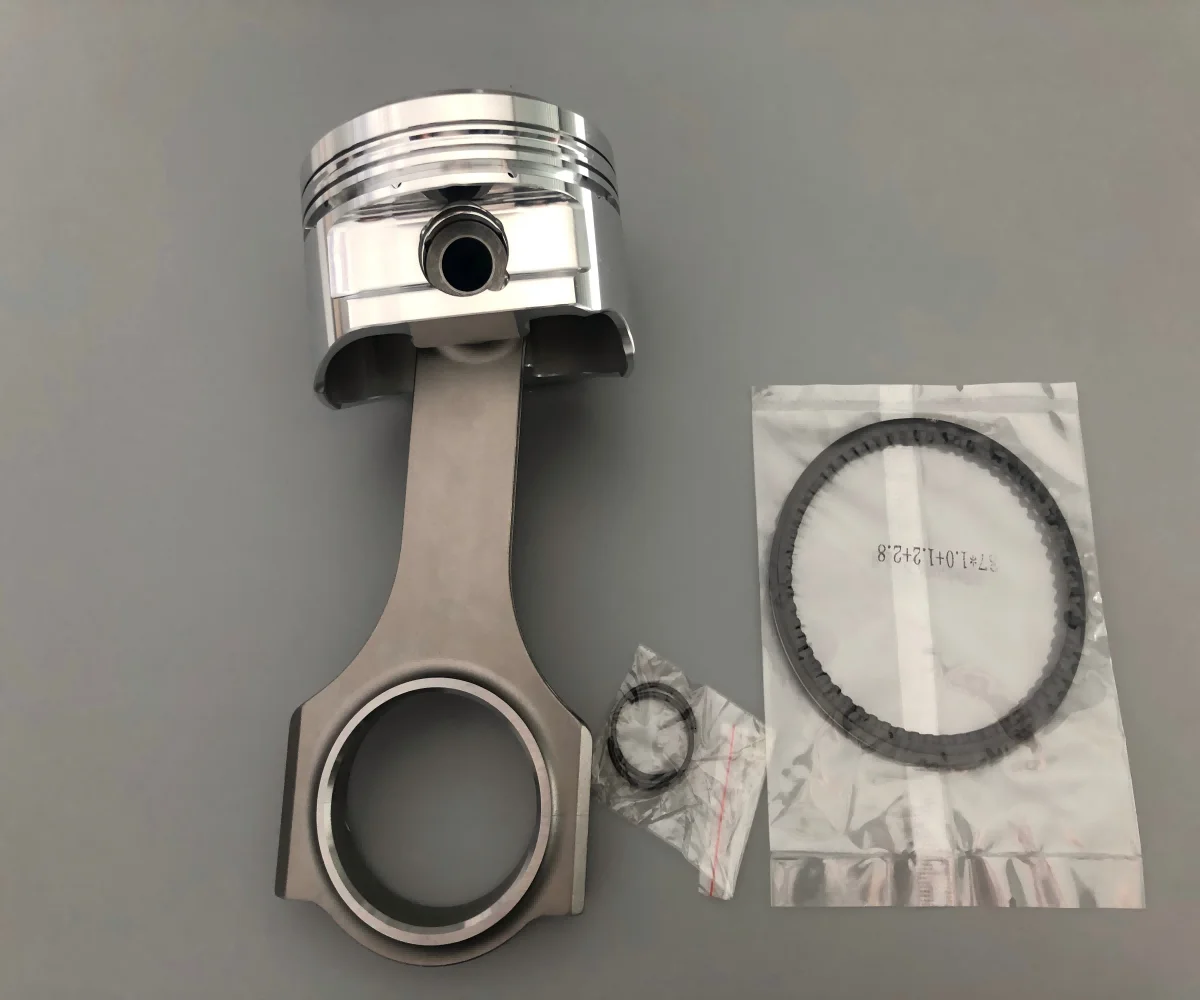

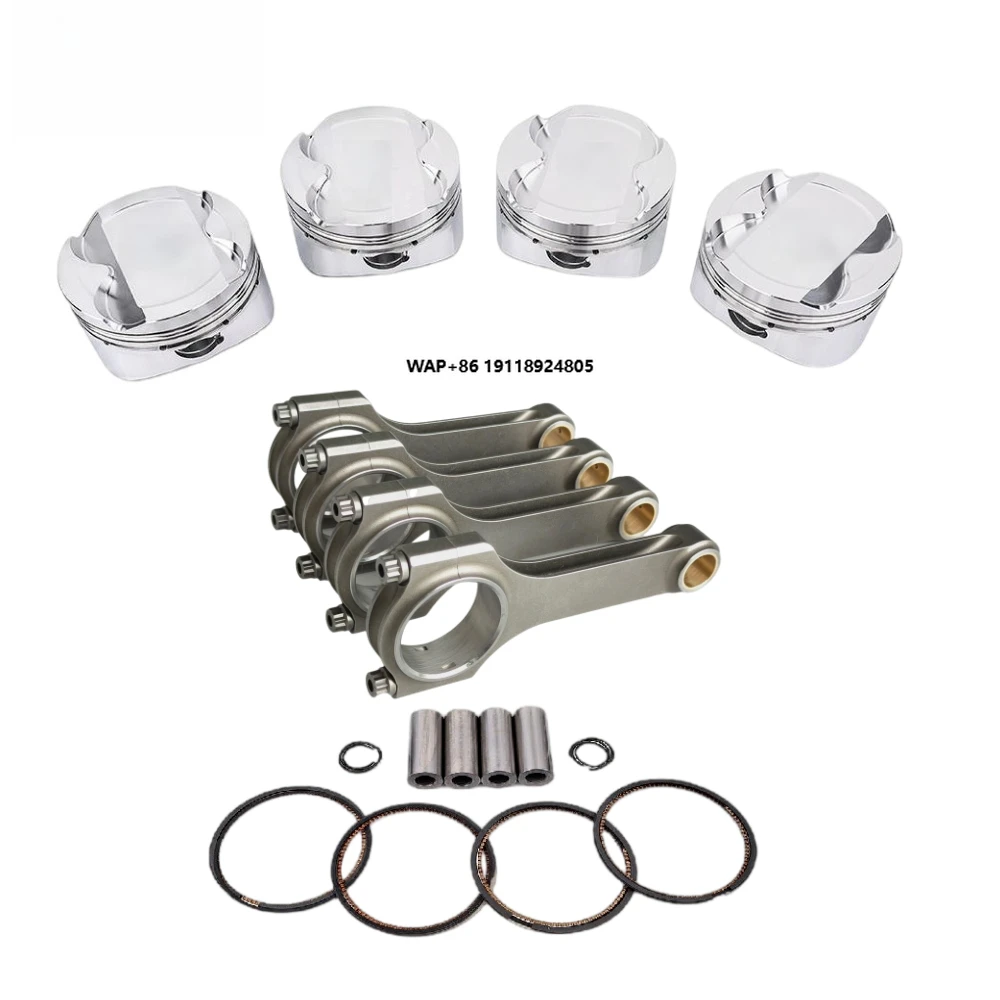

4 PIECES RODS WITH BOLTS

4PIECES PISTONS  WITH RINGS AND PIN

OUR SERVICES:

HIMYCAR AUTO PARTS- We are professionals.

 PRO custom piston services to create performance upgrades for specific engine applications , manufacture performance pistons and kits for a vast number of applications, our technique has reached the cutting-edge technology.
We can build your custom pistons to any bore size or compression ration you need!

‌All-Rounder: 4032 Aluminum Forged Pistons!‌
Race Weapon: 2618 Aluminum Forged Pistons!‌
‌High-Strength & Toughness: 4340 Alloy Steel Forged Connecting Rods!‌
‌Ultimate Tension: 300M Alloy Steel Forged Connecting Rods!

SHIPPING POLICY:

1. Orders will be dealed in 3 days. Tracking numbers will be updated within 3 days when the order was shipped.

2. For international order:

3. The default delivery is SpeedPAK Standard. It takes over 20 days when you get it.  If you want a quicker shipping way, you can contact with us.

WARRANTY POLICY:

1. We offer a Limited Warranty to entire products to be free from defects in workmanship and material under a normal service conditions for a period of 90 days whichever occurs form the original date of purchase.

2. No exchanges will be made for any product that has been damaged, misused or improper installed. We always recommend professional installation of our products.

3. The buyer assumes risk of damage caused by improper installation.

RETURN POLICY:

1. To return an item, you must email us first and get approval to send the item back. Item must be in the original box, all items in the box.

2. There will be 20% restocking fee for all items returned that are not defective.

3. You may return an item you are not satisfied within 15 days and receive a refund minus shipping.

4. Defective items have a 45 days grace period for refund or exchange, after then, you must pay to ship to us, no refund, exchange only.

 Our Packaging :

XR Automotive Industry Co., Ltd is a full-service auto parts provider for global aftermarket,
with more than 20 years of industry experience. We are  committed to providing customers with
high-quality auto spare parts and customized service to meet the needs of different customers.
Our professional product lines are:
Engine Spare Parts
 - Valve Lifter & Tappet
 - Rocker Arm
 - Camshaft - Connecting Rod
 - Piston
 - Valve Guide
 - Valve Seat, Engine valve
 - Wheel Hub/Rims
  OEM/ODM service
 HIMYCAR - Precision Auto Parts, Tailored to Your Engine !
