Products Description

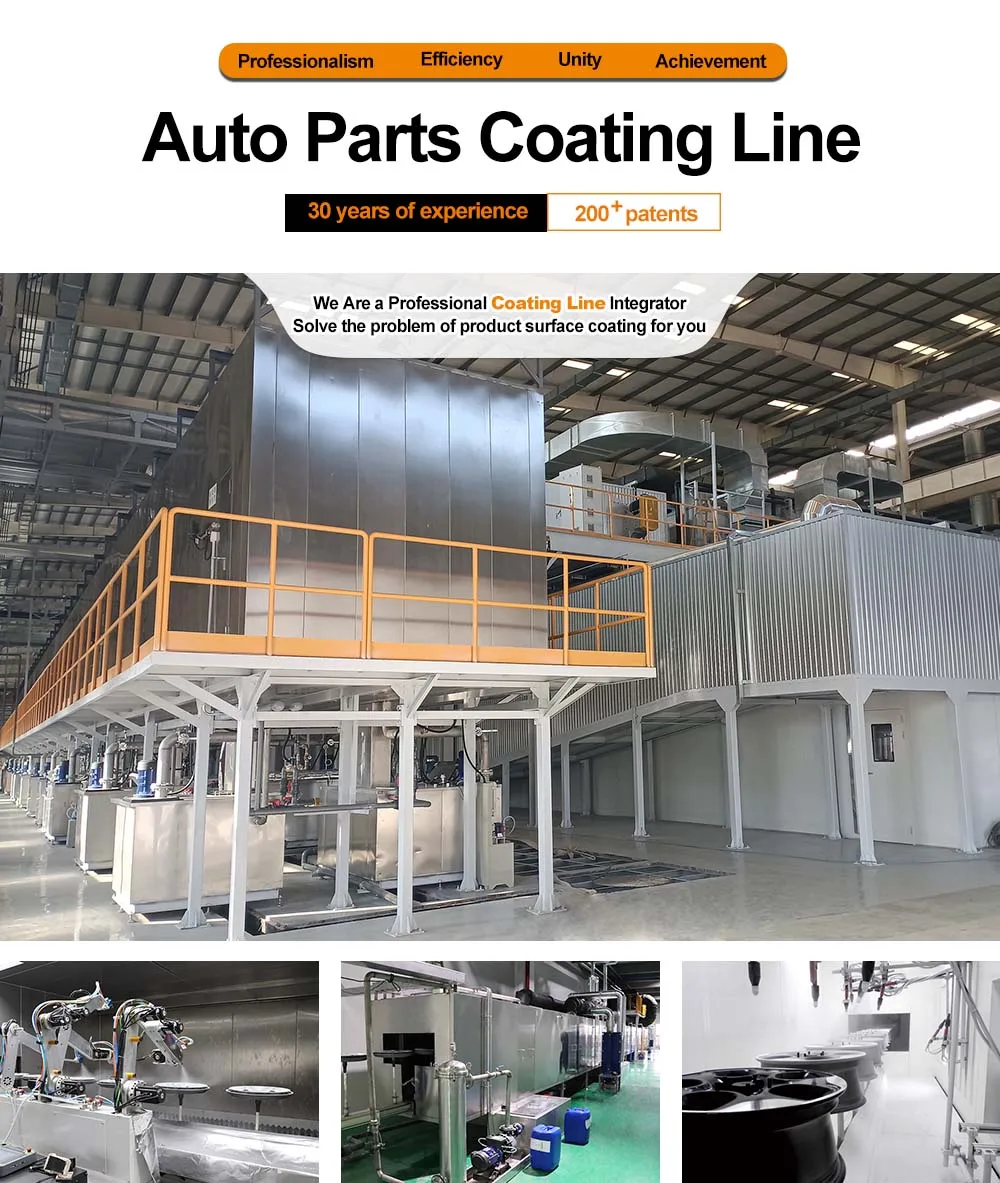

Auto Parts Coating Line
1. Our spraying booth designs high efficiency of paint or powder capture, maintenance free.
2. low energy consumption, 15-35% less than others.
3. A number of patent designs, site measurement and customized design.
4. The production line with more than 15 years of service life, and low maintenance and high safety.
5. The whole line provides remote monitoring and easy to maintenance.
6. High level of automation, reduce labor costs, visual logo easy to manage.
7. Provide explosion-proof design requirements;
8. Electrostatic spraying to save paint and reduce cost.
9. Environmental protection equipment meets the national environmental VOC emission standards.


Device Parameters
Workpiece

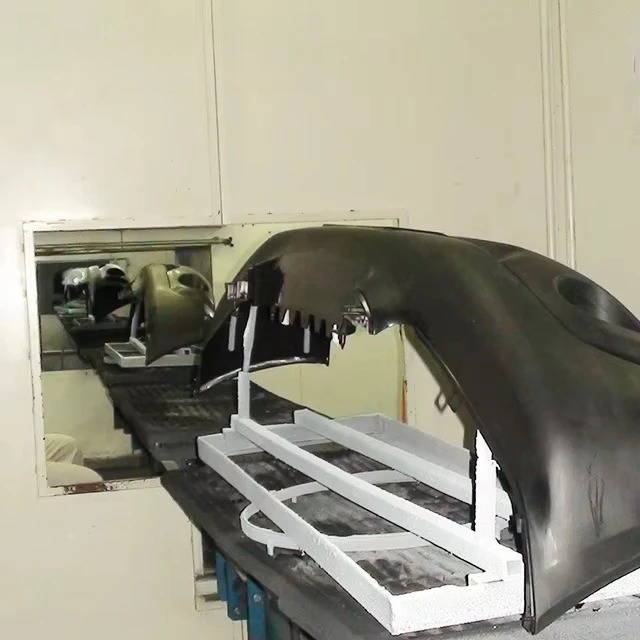

Automotive plastic parts, automotive bumper, automotive wheel hub, wheel hub cover, automotive fuel tank, automotive frame, etc
Workpiece material
ABS、PS、PPE、PA
Work system
300 days/year; 20H/day; equipment utilization rate: 85%
Spray booth temperature
25±3°C
Spray room humidity
65±5%RH
Spraying method
Robot
Maximum installation size of round Fixture
φ600×H150mm
Fixture workpiece pitch
300, 600, 900mm
Conveyor speed
500mm/min （1-3m/min Adjustable）
Length of conveyor belt
About 255M
Plant size
80m(L)*30m(W)*11m(H)
Power
380V 3φ 50 Hz
Compressed air
pressure≥0.7MPa±5%（Gauge pressure）   oil＜0.01mg/m³
solid ＜1.00mg/m³        dew point 0.6Mpa -20℃
Natural gas
standard pressure is medium pressure 80kPa
Tap water
pressure≥1.5Kg／㎝2
Heating energy
Electricity, natural gas

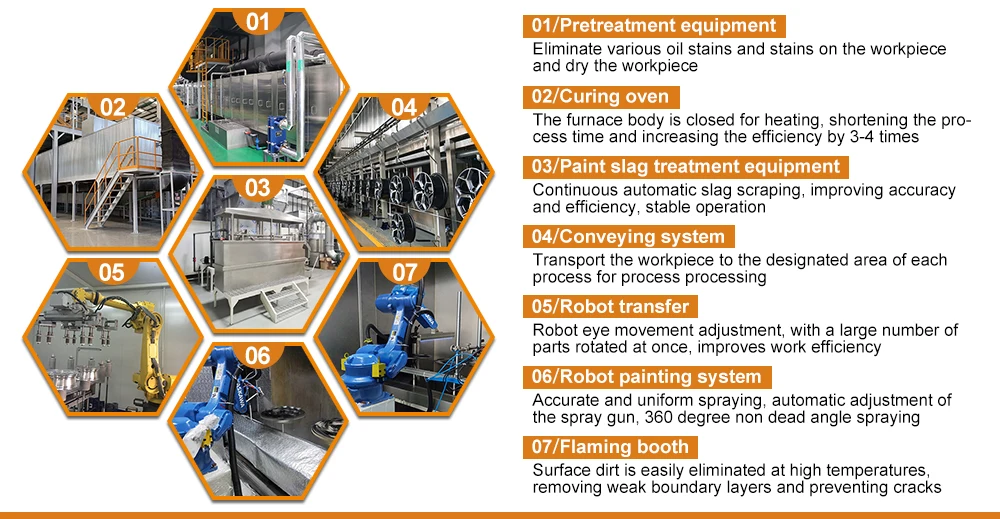

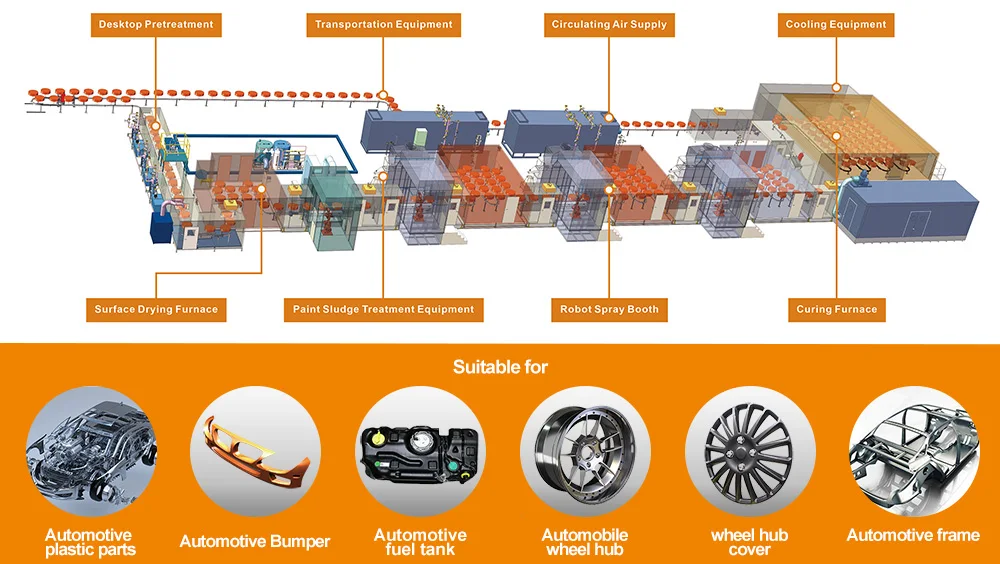

Composition of coating system

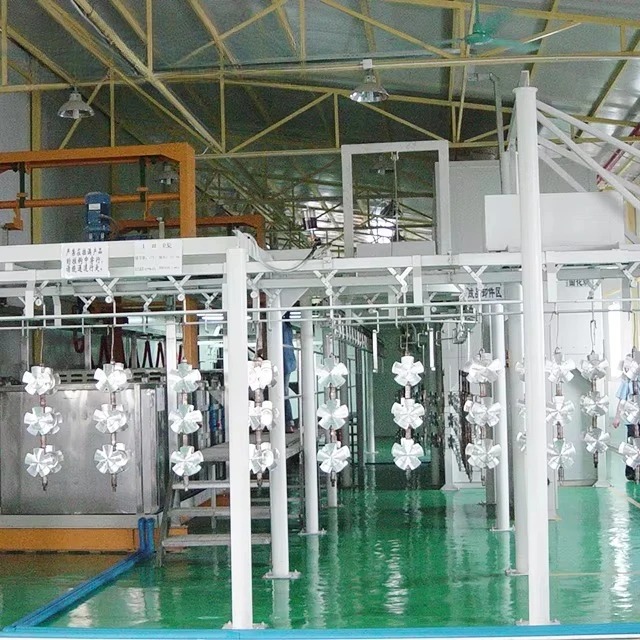

1. Mist spray pretreatment system
The general pretreatment as following: degrease → rinse → acid washing to dust removal → surface treatment → anodizing →water washing →deactivation → rinse →drying
Function: Removing the degrease, dust, rust on the surface of workpiece, and produce a layer Corrosion resistance, adding the adhesion of coating.

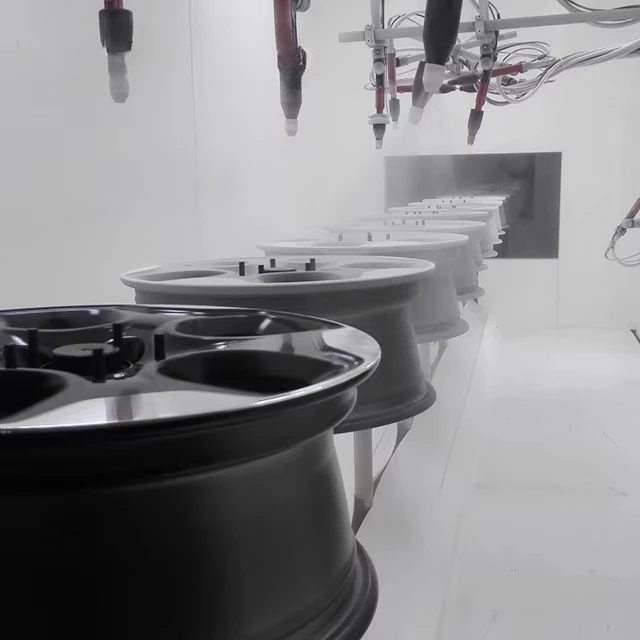

2. Powder spray system
Function: Powder spray evenly to the workpiece surface, the particular workpiece (including workpiece which easily produce electrostatic shield position) should be sprayed by a high-performance electrostatic spraying machine.
Spraying process: using the electrostatic adsorption principle, a evenly powder coating on the workpiece surface, powder collected by a recycle system, then screening and separation to be reused.

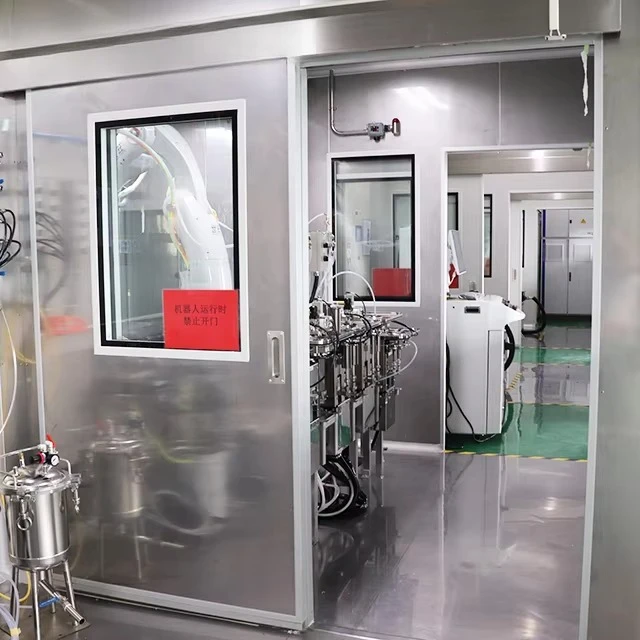

3. Spraying system

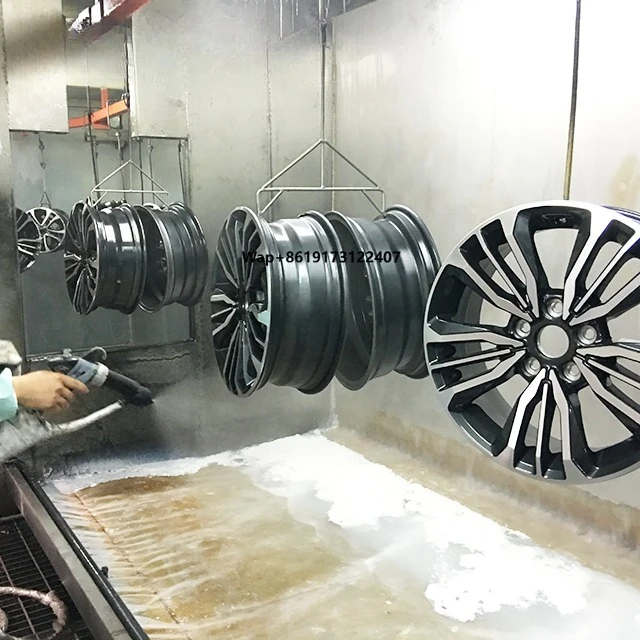

Spraying system consist of manual and robot spraying.
Function: Attractivechina paint spraying utilize oil spraying chamber, water curtain spraying chamber and robot spraying chamber.
Feature: Identified workpiece by color lens, with high efficiency identification to classify product. Insert the product information to processor (PLC, robot) to analyze and classify related process. With a high recognition rate, it is available for multiple product mixing production.
Nowadays, robot spraying has become a trend in manufacturing development. Its advantage as following:
A. Robot spraying and transferring system can reduce labor cost, realize industry automatic production.
B. Reduce safety accident, improve
C. The general robot with 6 axes, suitable with the standard related connection action with more than 6 axes, achieve high difficulty and required operation.
4. High temperature curing
Function: Heating the powder which on the surface of workpiece to a regulated temperature and timing, then perform melting, levelling and curing to achieve our required standard.
5. Heat source system
Function: We are available to supply natural gas, electricity, biologic pellet fuel etc. Based on clients" actual condition.
Quickly improve the temperature efficiency, matched with curing oven which adjustable and stable temperature, to achieve improve the product quality.
6. Electronic control system
Function: The controller installed nearby the equipment, easily to repair and maintenance, perform a central display, a stable operation.
Feature: The equipment available to connect network or utilize 4G telephone card, perform remote data collecting, intelligent monitor, realize industry 4.0. remote equipment maintenance and operation monitor, data transmit by internet, data collecting and related statement prepare by IPC.

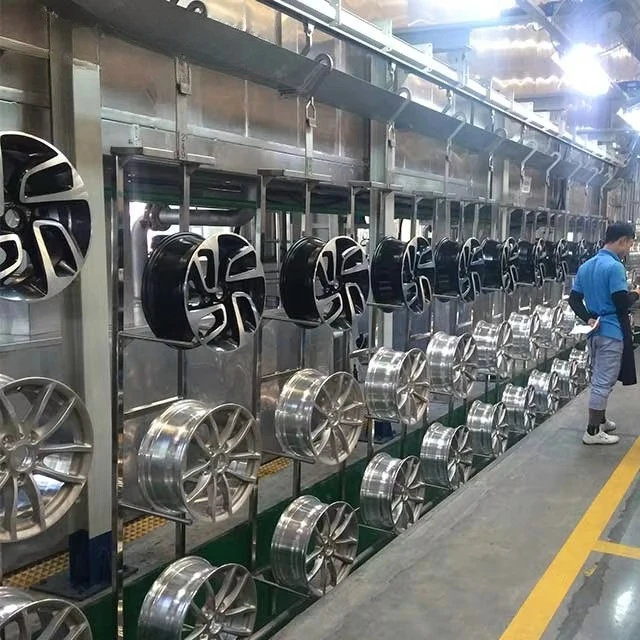

7. Conveyor system
We will design according to workpiece details and clients" required, including plate type conveyor, chain type conveyor, overhead type conveyor etc.

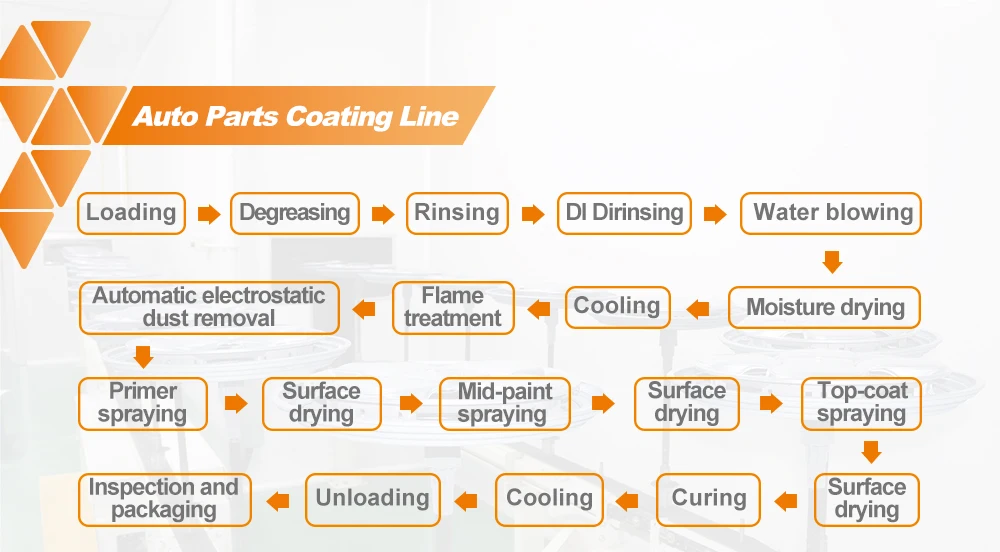

Technological Process
